Torque Frameless
| BRL115
HIGH TORQUE
|
| BRL115 HIGH TORQUE. FRAMELESS VERSION |
TYPE |
POLES |
Stall
torque |
AMP |
VEL |
Supply voltage |
115/2
|
32
|
13
|
2
|
250
|
380Vx3ac
|
115/3
|
32
|
20
|
3
|
250
|
380Vx3ac
|
115/4
|
32
|
27
|
4
|
250
|
380Vx3ac
|
| STANDARD MOTOR DIMENSIONS
|
Type |
L mm |
Motor diameter |
Through hole |
Stator holes PCD |
Rotor holes PCD |
Holes type |
115/2
|
70
|
135mm
|
52
|
125
|
65
|
M5-M6
|
115/3
|
110
|
135mm
|
52
|
125
|
65
|
M5-M6
|
115/4
|
150
|
135mm
|
52
|
125
|
65
|
M5-M6
|

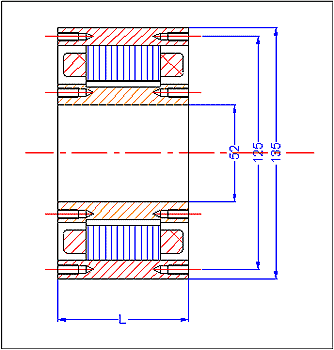

| Drawing
|
 |
| TORQUE
MOTORS BRL 121
|
| BRL121 HIGH TORQUE. FRAMELESS VERSION |
TYPE |
POLES |
Stall
torque |
AMP |
VEL |
Supply voltage |
121/1
|
24
|
15
|
1,5
/ 3
|
500
/1000
|
380Vx3ac
|
121/2
|
24
|
30
|
3
/ 6
|
500
/1000
|
380Vx3ac
|
121/3
|
24
|
45
|
4,5
/ 9
|
500
/1000
|
380Vx3ac
|
121/4
|
24
|
60
|
6
/ 12
|
500
/1000
|
380Vx3ac
|
121/5
|
24
|
75
|
7,5
/ 15
|
500
/1000
|
380Vx3ac
|
| STANDARD MOTOR
DIMENSIONS
|
Type |
L mm |
Motor diameter |
Through hole |
Stator holes PCD |
Rotor holes PCD |
Holes type |
121/1
|
84
|
200mm
|
90mm
|
190
|
100
|
M6
- M8
|
121/2
|
120
|
200mm
|
90mm
|
190
|
100
|
M6
- M8
|
121/3
|
156
|
200mm
|
90mm
|
190
|
100
|
M6
- M8
|
121/4
|
192
|
200mm
|
90mm
|
190
|
100
|
M6
- M8
|
121/5
|
228
|
200mm
|
90mm
|
190
|
100
|
M6
- M8
|

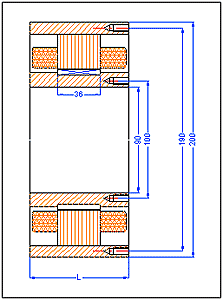

| Drawing
|
 |
|
|
| TORQUE
MOTORS BRL 240
|
| BRL240 HIGH TORQUE. FRAMELESS VERSION |
TYPE |
POLES |
Stall
torque |
AMP |
VEL |
Supply voltage |
240/1
|
24
|
40
|
4/8
|
500
/ 1000
|
380Vx3ac
|
240/2
|
24
|
80
|
8/16
|
500
/ 1000
|
380Vx3ac
|
240/3
|
24
|
120
|
12/24
|
500
/ 1000
|
380Vx3ac
|
240/4
|
24
|
160
|
16/32
|
500
/ 1000
|
380Vx3ac
|
240/5
|
24
|
200
|
20/40
|
500
/ 1000
|
380Vx3ac
|
| STANDARD MOTOR
DIMENSIONS
|
Type |
L mm |
Motor diameter |
Through hole |
Stator holes PCD |
Rotor holes PCD |
Holes type |
240/1
|
88
|
270mm
|
135mm
|
260
|
145
|
M6-M8
|
240/2
|
122
|
270mm
|
135mm
|
260
|
145
|
M6-M8
|
240/3
|
152
|
270mm
|
135mm
|
260
|
145
|
M6-M8
|
240/4
|
184 |
270mm
|
135mm
|
260
|
145
|
M6-M8
|
240/5
|
216 |
270mm
|
135mm
|
260
|
145
|
M6-M8
|

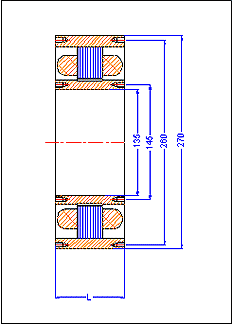

| Drawing |
 |
|
|
| MOTORI
TORQUE. BRL 450
|
| BRL450 HIGH TORQUE. FRAMELESS VERSION |
TYPE |
POLES |
Stall
torque |
AMP |
VEL |
Supply voltage |
450/1
|
48
|
210
|
21
|
500
|
380Vx3ac
|
450/2
|
48
|
420
|
42
|
500
|
380Vx3ac
|
450/3
|
48
|
630
|
63
|
500
|
380Vx3ac
|
| STANDARD MOTOR
DIMENSIONS
|
Type |
L mm |
Motor diameter |
Through hole |
Stator holes PCD |
Rotor holes PCD |
Holes type |
450/1
|
112
|
480mm
|
282mm
|
300
|
465
|
M10-M12
|
450/2
|
172
|
480mm
|
282mm
|
300
|
465
|
M10-M12
|
450/3
|
232
|
480mm
|
282mm
|
300
|
465
|
M10-M12
|

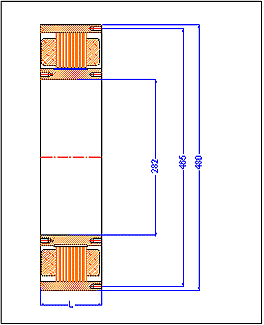

| Drawing |
 |
|
